Four Way Radio Shuttle Racking
——
Four-way shuttle racking system is an automated intensive storage system integrating multi-layer racking and its peripheral equipment, which realizes the four-way logistics operation of the same level operation lane through the shuttle body according to the operation instruction, and can realize the storage scheduling and management of any storage position on the same level.
The system combines with the elevator to realize the intelligent shuttle car or storage items for leveling operation, in order to realize the three-dimensional dynamic storage management of the storage unit in the whole storage area.
Four Way Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Four-way shuttle elevator
—
Four-way shuttle elevator is a key equipment, the main function is responsible for the goods pallet in and out of the warehouse operation, to support the efficient operation of the four-way shuttle system.
It is mainly responsible for vertical lifting and levelling tasks, and can be used in conjunction with pallet or box type 4-way shuttles to achieve high density storage and fast access to goods.
Four Way Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Product Feature
—
1) 4 direction move.
It can move forward on the cross track horisontally and vertically, then it can reach to each destinated pallet location.
2) It can realize the high density storage function.
It can plan a maximum storage volume according to the SKU and the packing specification to fulfil the Single and mutiple pallet location storage combination.
3) Real-time information real-time monitoring.
WCS dispatches vehicle operations, real-time monitoring of vehicle coordinate position, speed, power and other status!
Four Way Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Specifications
—
| Basic specifications | Dimension | 1185*980*126mm |
| Rated load | 1.5T |
| Pallet width | 1200-1600mm |
| Tray depth | 800-1200mm |
| Equipment weight | 350kg |
| Performance | Maximum speed | 1.4m/s |
| Driving accuracy | ≤2mm |
| Lifting time | 2.5s |
| Reversal time | 2.5s |
| Positioning accuracy | ±2mm |
| Battery performance | Battery Type | LFP |
| Electricity | 72V/32AH |
| Battery life | 7-9H/1-2H |
| Charging method | Automatic charging |
| Operating temperature | -10~45℃ |
| Charging temperature | 0~45℃ |
Four Way Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Packing and Shipping
—
Product Packaging:
The Shuttle Pallet Racking product will be packaged in a sturdy cardboard box with foam padding to ensure that the product arrives in good condition. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The Shuttle Pallet Racking product will be shipped via standard ground shipping. The shipping cost will be calculated based on the destination and weight of the product. Once the order has been processed and shipped, the customer will receive a tracking number to track the shipment.
Four Way Radio Shuttle Racking · Warehouse Storage Rack · Made In China

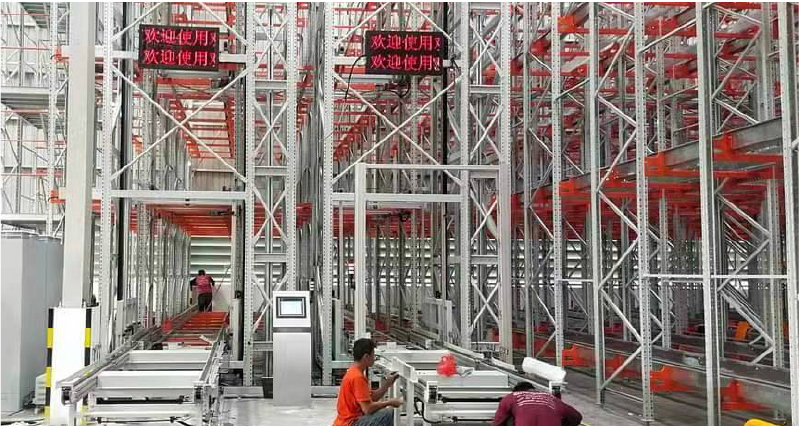

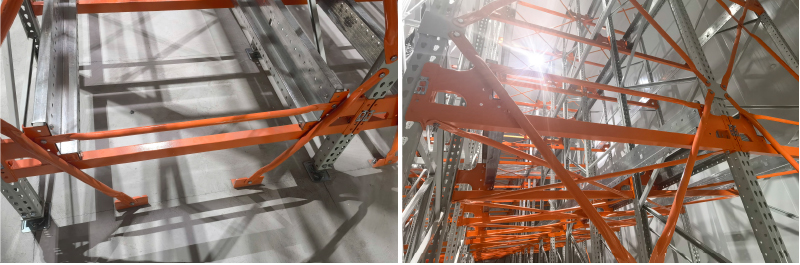

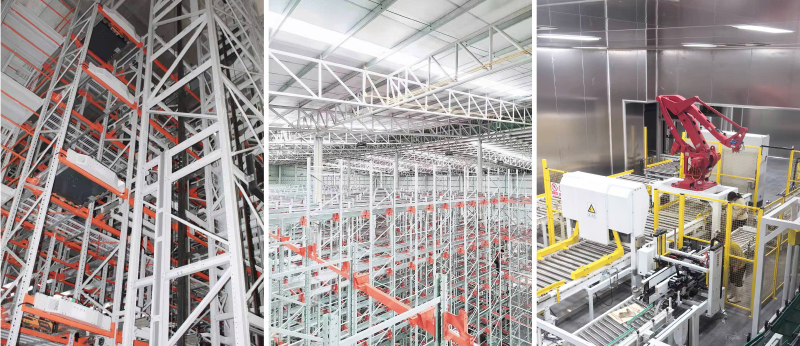

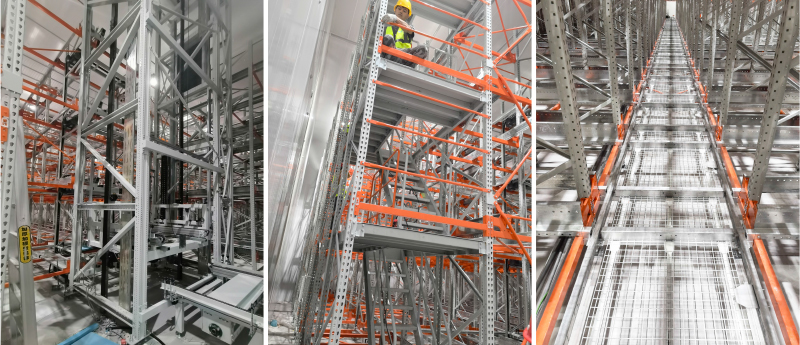

Thailand Onsite Installing Pictures Display
—
Four Way Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Four Way Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Four Way Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China
