Kerb Curved Barriers
——
FS-2021A
Flexible · Plastic · anti-collision
Structural Principles
——
Kerb Curved Barriers · Warehouse Storage Rack · Made In China
Application
——

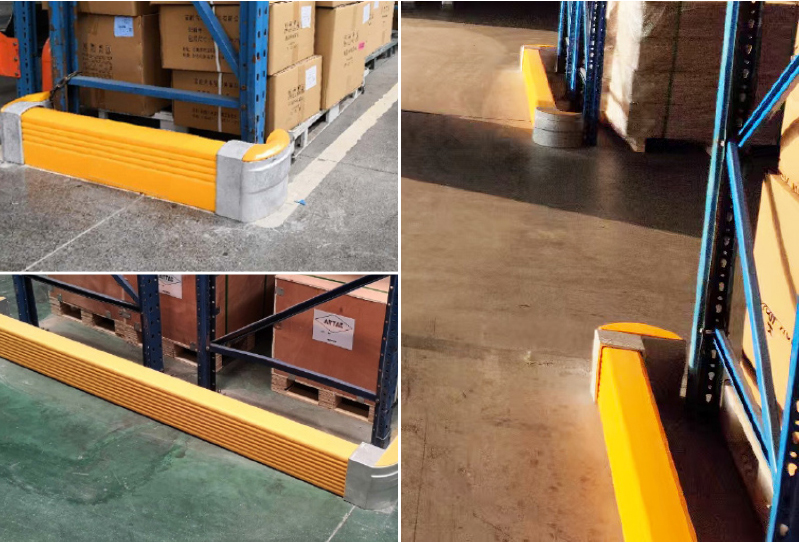

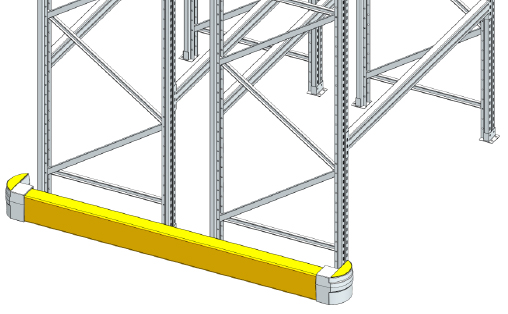

suitable for the protection for rack end.
| | Absorbable Impact Energy |
| 1 | 3.0 Tons Vehicles, 5.5 km/h Speed, The forklift and the safety barriers are 90° , the impact of the forklift's tail is on the middle of the 1.6m safety barrier beam. |
| 2 | 3.0 Tons Vehicles, 2.0 km/h Speed, The forklift and the safety barriers are 90° , the impact of the forklift is on the metal base. |
Tube: Exclusively designed by imported macromolecular materials, strong weather resistance, durable, original color, ISO4892-3 approved, strong chemical resistance, no erosion, low level of chemical activity.

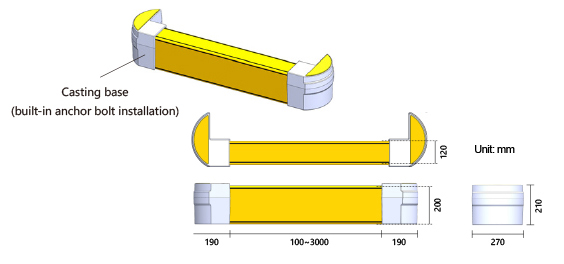

Base: The end is made of high-strength metal integral casting; Dacromet finish ;neutral salt-fog test 1000 hours, do not rust.
Ground Connector: Inrstalled by inverted cone anchor bolt, Dacromet finish, neuutral salt-for test 1000 hours, do not rust.
Kerb Curved Barriers · Warehouse Storage Rack · Made In China
Product Description
——
1. It is easy to install and disassemble, and can be stacked to the required height.
2. Bright yellow provides excellent visual reference for drivers and other warehouse personnel.

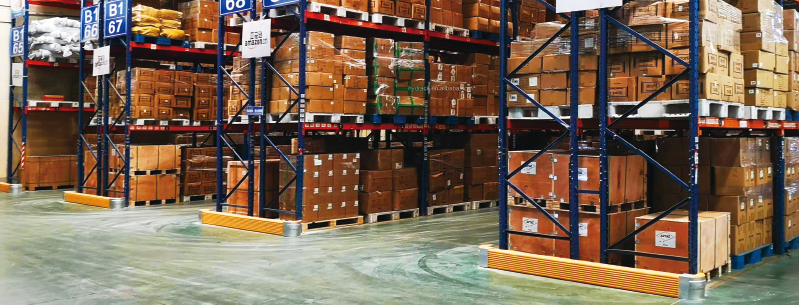

3. Prevent forklift truck and pallet truck from damaging the shelf.
4. It can bend repeatedly and absorb energy when impacted, thus reducing the need for replacement.
5. The product is not easy to fade, durable, no need to repaint, UV protection and testing in line with SO4892-3 standards.
